HIEE series AC charger is the charging equipment specially developed by Wuhan Hiconics Intelligent Electric Co., Ltd. for electric vehicles. This series of products have single phase and three phase type and are equipped with wall-mounted and floor-mounted installation modes. The product has integrated charging interface, HMI, communication, billing system together aims to achieve a higher safety, stronger adaptability and more convenient operation. With waterproof, dustproof, anti-corrosion functions. Streamline design adopted in the charger appearance makes users feel more comfortable. Hiconics AC charger could be applied in large parking lots, residential areas, shopping malls, hospitals, parks and scenic spots, etc.Charging pile could fit well with all European standard EVs with its perfect compatibility. Precise control of power supply and cut off to avoid safety incident.
1. Strict Control Pilot
1. Strict Control Pilot
2. Multiple Charging Mode
Totally three charging modes of automatic charging, reservation charging and ration charging are selected according to actual situation. Start methods of plug and charge, by IC card, by APP and by pressing start button could also be set freely aims to meet different requests of various customers.
3. Robust Protection
The charging pile has been equipped with robust protection functions of overload, surge, overvoltage, undervoltage, short circuit, earthing, overheat, lightening, emergency stop, etc to avoid damages by accident caused by abnormal weather or grid.
4. Appearance with Perfect Sealing
Appearance design adopts zinc-plated board + multi-layer spraying process to achieve excellent sealing, which can resist the rainstorm effectively. The multi-layer spraying technology could prevent rust from causing damage to the product. Anti-ultraviolet treatment adopted in the coating process aims to restrain the cabinet from aging, which has ensured longer life cycle of the product.
|Input Feature||AC input voltage||220 VAC||System Input Voltage|
|AC Input Frequency Range||45-65Hz|
|Power Factor||≥0.99||50% or higher load|
|AC Input Mode||Single-phase Three-ware system||L+N+PE|
|Output Feature||Output Voltage Regulating Range||230VAC|
|Output Charging Interface||Meet GB/T Standard/American Standard|
|Stable Voltage Precision||≤±0.5%||In Full Output Range|
|Stable Current Precision||≤0.5%|
|Current Error||≤±1% Output DC Current≥30A|
≤±0.3A Output DC Current<30A
|Average Flow Unbalance Degree||≤±5%|
|Average Efficiency||≥95%||50% or higher load|
|Input Current Harmonic Wave||≤5%|
|Power Frequency Withstand Voltage||2500V AC-3500V DC|
|Insulation Resistance||≥20MΩ||Test Voltage 1000V DC|
|Connector Cable Length||Standard Length is 5M|
|Environmental Protection||Meet 2011/65/EU|
How to Use
A. How to start charging
1. Make sure the charger is well connected with the power.
2. Use your Mode 3 EV charging cable to connect the charger with the EV.
B. How to stop charging
1. The charger will stop automatically when the charging is finished.
2. Disconnect the Mode 3 EV cable from the charger and the EV on its both ends.

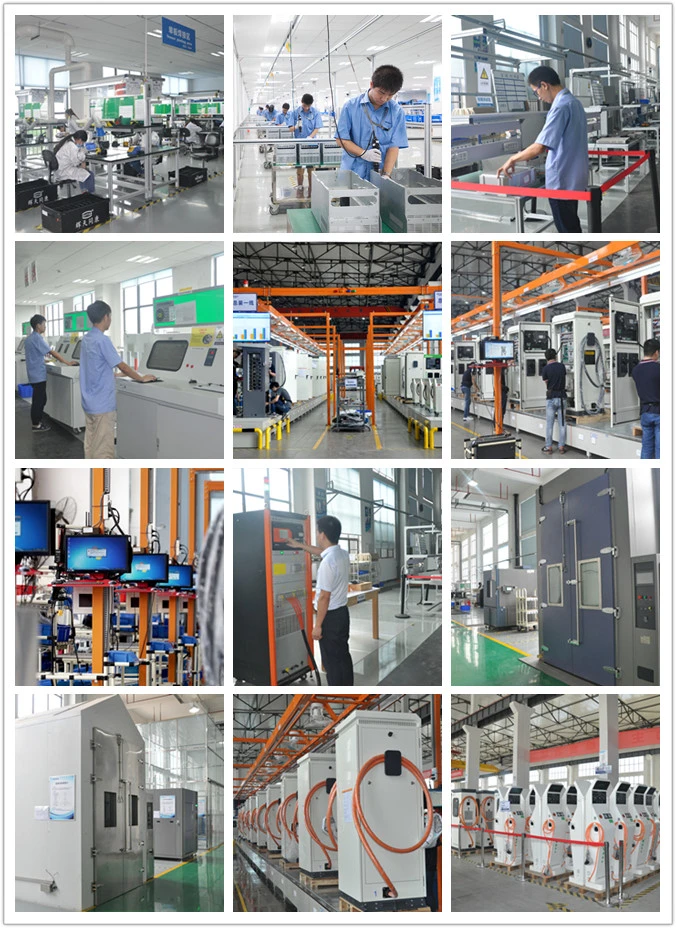

Hiconics Intelligent has built national advanced automatic assembly production line with rhythm set automatically. Operation documents are put on display screen. Debugging and aging process are operated with automation equipment. Data self-collection, self-diagnosis and self-uploading could be achieved also. One charging pile could be finished within 35 minutes and daily production capacity reaches 13 sets for each production line.
Hiconics charging piles have been widely applied in more than 200 cities in China. The specially developed European Standard Charging Pile has passed strict test procedure of TUV SUD and been awarded with CE and Dakks certificates. Hiconics products have been exported to more than 10 countries and regions such as England, France, Bulgaria, Australia and Singapore, etc.
Good to Know
-This EV charger is special for home use. It doesn't have the billing function.
-This charger have auxiliary support and charging connector, which could be used directly with the EV.
-If you have no experience in installing electrical equipment, please contact the local electrician for assistance.
-This charger has precise internal structure. Please do not take it apart without any professional technical support. Any questions, please contact our Customer Service Manager at the first time.
-Do not install it outside without any shelter.
-This charger is only for EV charging. Please don't use it in any other occasions.
