The HIE110 series DC charging pile is the fast charging equipment which is designed and developed by Wuhan Hiconics Intelligent Electric Co., Ltd. for pure EV vehicles. Outdoor floor-mounting method adopted and with waterproof, dustproof and anti-corrosion functions, the charging pile could achieve a protection grade of IP54 and its design could meet environment protection demand. With modular design concept adopted, it has easily achieved convenient installation and commissioning and simple maintenance, etc. This kind of charging pile could be applied in large-scale parking lots, residential areas, shopping malls, hospitals, transfer stations, airports, docks, parks and scenic spots, etc.- Communication protocol meets OCPP 1.6J, which has successfully connected with many European operators due to its good compatibility.
1. Smart Communication Protocol
1. Smart Communication Protocol
- The back office system is equipped with remote upgrading, message duplicating, fault diagnosis, intelligent charging and other functions.
2. Multiple Charging Mode
Totally four charging modes of automatic charging, reservation charging, ration charging and SOC charging could be selected according to actual situation. Start methods of plug and charge, by IC card, by APP and by pressing start button could also be set freely aims to meet different requests of various customers.
3. Easy-to-control HMI Interface
Chinese, English, French and Spanish version HMI interface adopted, various languages could be selected. Computer back office system, Mobile apps and HMI interface could be selected to monitor the charging state and related parameters could be supplied for effective judgment.
4. Perfect Security Protection
- Protect Functions: overvoltage, over current, input/output default phase, residual current protection, inverse time limit when motor overload, etc
|Input Feature||AC input voltage||323~437 VAC||System Input Voltage|
|AC Input Frequency Range||45~65Hz|
|Power Factor||≥0.99||50% or higher load|
|AC Input Mode||Three-phase Five-ware system||3P+N+PE|
|Output Feature||Output Voltage Regulating Range||200~750VDC||Could achieve continuous regulating by monitoring means|
|Output Current Range||1~300A|
|Stable Voltage Precision||≤±0.5%||In Full Output Range|
|Stable Current Precision||≤0.5%|
|Current Error||≤±1% Output DC Current≥30A|
≤±0.3A Output DC Current<30A
|Average Flow Unbalance Degree||≤±5%|
|Average Efficiency||≥95%||50% or higher load|
|Input Current Harmonic Wave||≤5%|
|Power Frequency Withstand Voltage||2500V AC-3500V DC|
|Insulation Resistance||≥20MΩ||Test Voltage 1000V DC|

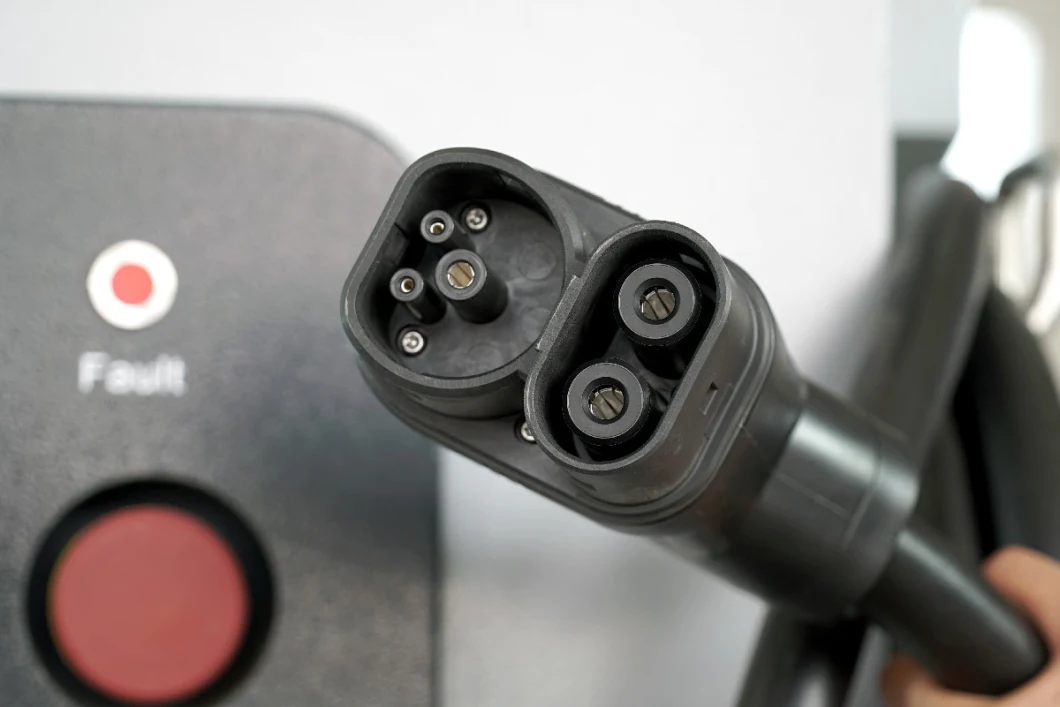

|Connector Cable Length||Standard Length is 5M|
|Environmental Protection||Meet 2011/65/EU|
Hiconics Intelligent has built national advanced automatic assembly production line with rhythm set automatically. Operation documents are put on display screen. Debugging and aging process are operated with automation equipment. Data self-collection, self-diagnosis and self-uploading could be achieved also. One charging pile could be finished within 35 minutes and daily production capacity reaches 13 sets for each production line.
Hiconics charging piles have been widely applied in more than 200 cities in China. The specially developed European Standard Charging Pile has passed strict test procedure of TUV SUD and been awarded with CE and Dakks certificates. Hiconics products have been exported to more than 10 countries and regions such as England, France, Bulgaria, Australia and Singapore, etc.

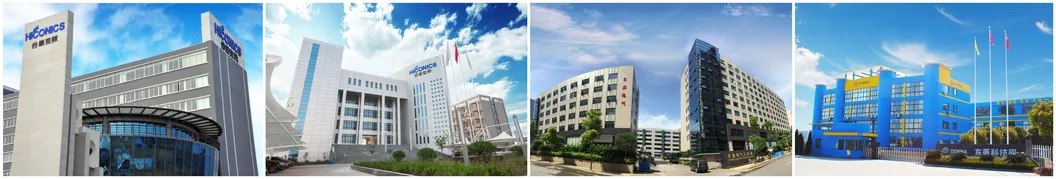

About Hiconics Group
As one of the largest manufacturers of charging equipment and components in China, HICONICS possesses 17 years of expertise in the field of driving and energy saving. We are the supplier of Nari Grid Corporation of China and qualified supplier of YUTONG BUS GROUP, the largest bus manufacturer in China. We have cooperated with many EV Manufacturers and Distributors in Europe.
Our charging connectors has obtained CE certifications. Our EV chargers have been widely used in over 200 cities inside China from northeast Harbin to south Guangzhou, from West Tibet to East Zhejiang, you can see Hiconics chargers all over China. Also our European standard chargers have been applied in over 10 countries and regions all over the world, including France, Bulgaria, Romania, Australia, Singapore and Columbia, etc.
We believe in that diligent service is the soul of an outstanding company. No matter if you are our regular customers or new customers who just find us in the first time, any questions of you will be replied within the shortest time. And we have conscientious after-sale services, any problems of products will be followed up responsibly by our professionals until be solved perfectly.
1. Plywood cartons which meed exporting rules adopted.
2. Anti-moisture measures and desiccant used in dealing the package.
3. Vacuum package could also be accepted according to detailed requirements.
We would like to show our honesty, top quality, competitive prices and high efficiency to establish business relationships with you. Our goal is to provide not only products, but also a complete solution including product design, tooling, fabrication and service to our customers to achieve their upmost satisfaction.
FAQQ1. What is your term of packing?
A: Generally, we pack our goods in neutral brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your term of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
